主要特點:MAIN FEATURES
1、 高效伺服振動:采用雙伺服電機,帶強制同步機構,響應速度快、噪聲小、同步性好,可根據不同磚型需求設置成型參數,成型速度快;
High efficiency servo vibration: With dual servo motor with forced synchronization mechanism, quick response speed, low noise and good synchronization, the forming parameters can be set up according to different brick requirements.
2、同步機構:獨特的弓形梁脫模結構確保脫模時準確的同步性,不僅確保了制品的良品率,而且便于維護。
Synchronization mechanism: Unique arch beam stripper structure ensures accurate synchronization when molding, not only ensures good product rate but also easy maintenance.
3、德國工業設計:德國工業外觀設計搭配先進噴涂工藝,使得整機外觀美觀大方。
German Industrial Design: German industrial design with advanced spray-painting technology makes the whole machine beautiful and elegant.
4、料斗電機開門:料門采用減速機驅動相比油缸動作,更加穩定,響應速度快,從而提高生產效率。
Open the door of the hopper motor: The gate is driven by a speed reducer, more stable than the cylinder, and the response speed is fast response.
5、高效液壓:液壓系統采用進口高動態比例閥和高性能葉片泵控制,具有參數調節方便、耐高壓、低噪音、節能、維修方便等特點。
High efficiency hydraulic: The hydraulic system is controlled by high dynamic proportional valve and high-performance vane pump. It has the characteristics of convenient parameter regulation, high pressure resistance, low noise, energy saving and easy maintenance.

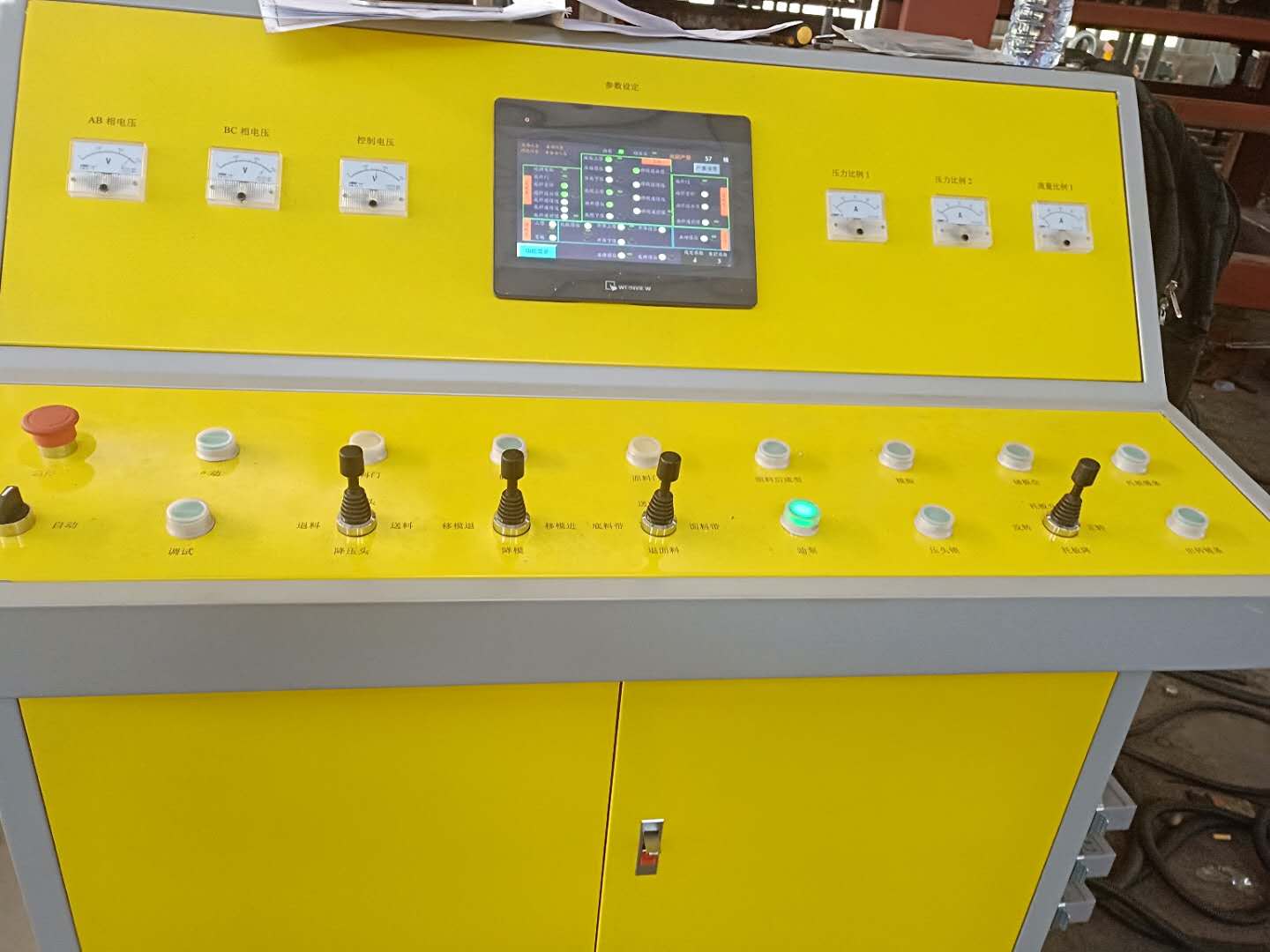

6、智能控制:控制系統核心硬件采用西門子PLC,其余感應器元件采用德國圖爾克等知名品牌;操作上簡單易懂;具備全方位故障報警系統和自動診斷功能,縮短30%故障排除時間。
Intelligent control: The core hardware of control system adopts Siemens PLC, the remaining sensor components adopt famous brands such as Germany's Turk, easy to understand operation, and has the all-directional fault warning system.Automatic diagnostic function,30% reduction of troubleshooting time.
采用懸掛式雙向定位料車,運行阻力小,解決因托板厚度誤差對產品的影響。
The suspension two-way positioning material car is adopted, which has small running resistance and solves the influence of the thickness error of the supporting plate on the product.
產量表 PRODUCTION CAPACITY |
|||||
磚樣 BLOCK |
長 L mm |
寬W mm |
高H mm |
塊/模PCS |
塊/8小時 PCS/8HOUR |
|
390 |
190 |
190 |
15 |
22500-28000 |
240 |
115 |
51 |
95 |
150000-180000 |
|
|
200 |
100 |
60 |
45 |
65000-70000 |
|
240 |
115 |
90 |
55 |
79200-92400 |
以上產量為理論計算值。產量與成型周期、生產量、原材料和產品類型有關系。 The above output is a theoretical calculation value. Output is related to molding cycle, production volume, raw materials and product types. |
主要技術參數 TECHNICAL DATA
主機尺寸 MACHINE SIZE
|
11500×3750×2800(mm)
|
主機功率 POWER OF MACHINE
|
76.5KW
|
成型面積 PRODUCTION AREA
|
1300*1100
|
激振力 VIBRATION POWER
|
120-150 (KN)
|
成型周期CYCLE TIME
|
15- 20 (s)
|
廠房面積REQUIRED FACTORY AREA
|
1000 (m²)
|
托板尺寸 PALLET SIZE
|
1400*1100*30
|
裝機容量 POWER REQUIRED(KW)
|
160kW
|
整機重量 MACHINE WEIGHT
|
22.8 (T)
|
攪拌機型號 MIXER
|
JS1500
|
